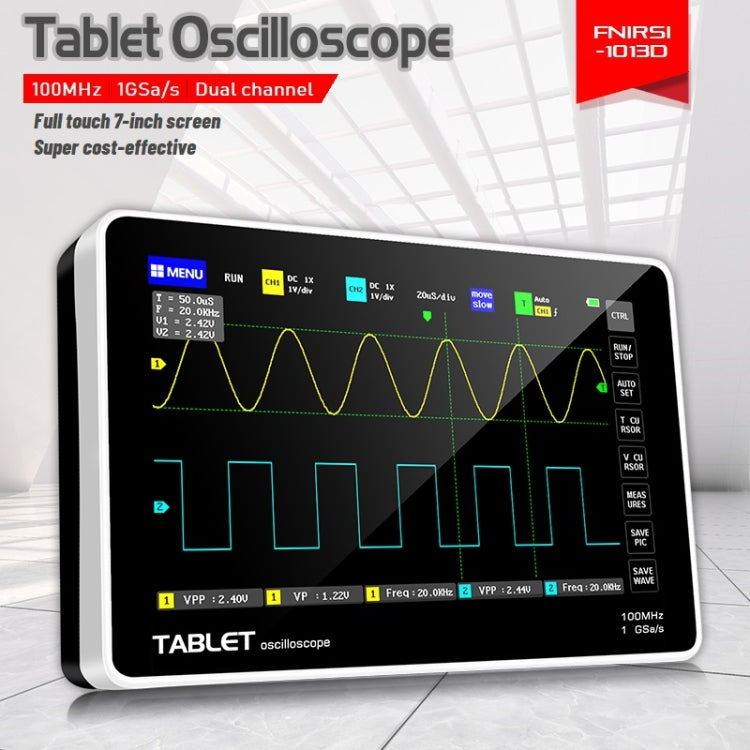

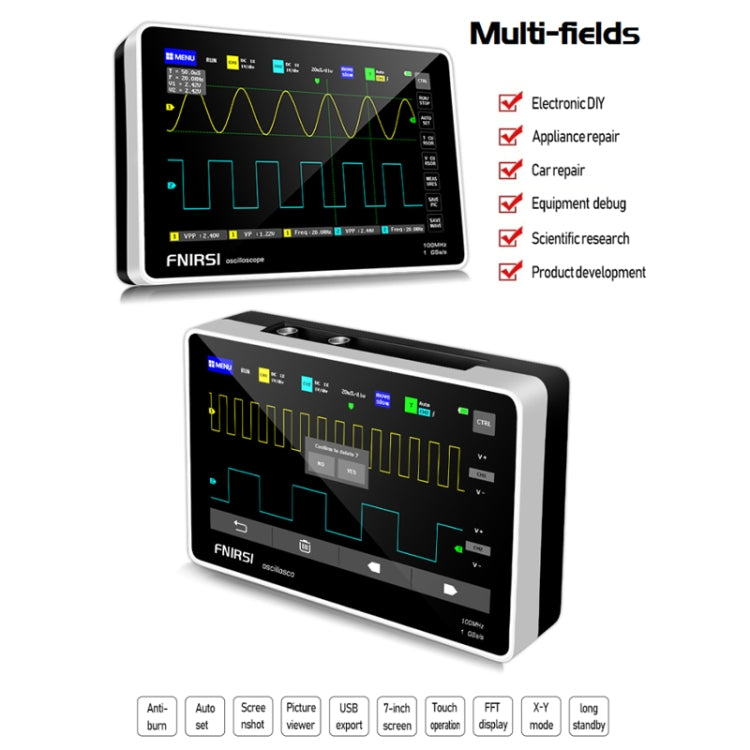

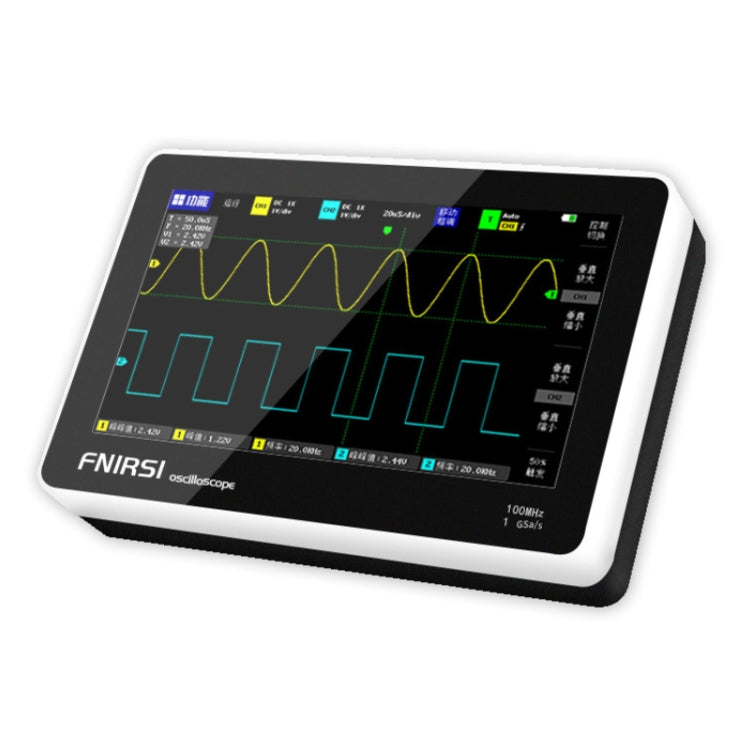

FNIRSI 1013D 1GS Sampling Dual Channel 100M Bandwidth Digital Oscilloscope, US Plug(English)
FNIRSI 1013D 1GS Sampling Dual Channel 100M Bandwidth Digital Oscilloscope, US Plug(English) is backordered and will ship as soon as it is back in stock.
FNIRSI 1013D 1GS Sampling Dual Channel 100M Bandwidth Digital Oscil...

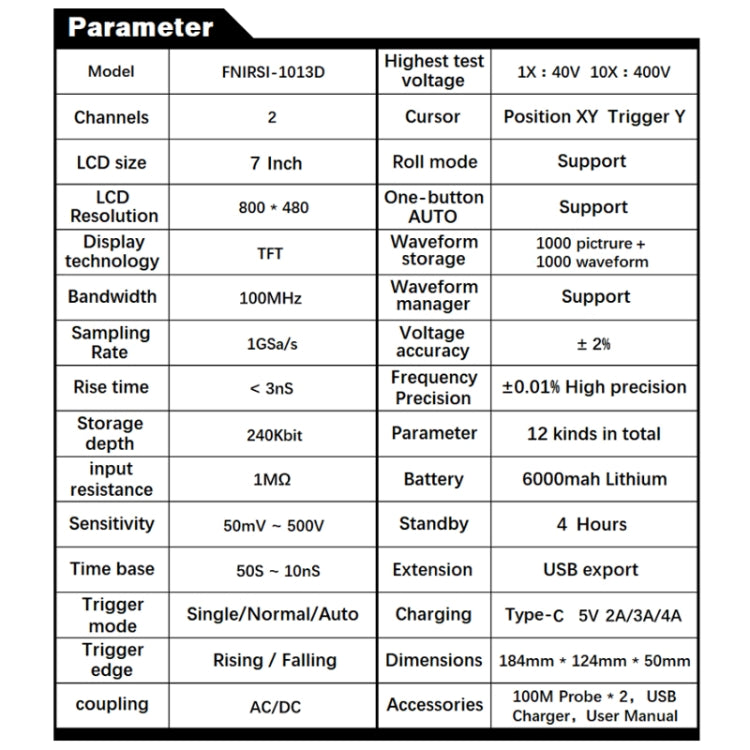

Description
Description
1. Material: ABS
2. Analog bandwidth: 100MHzx2

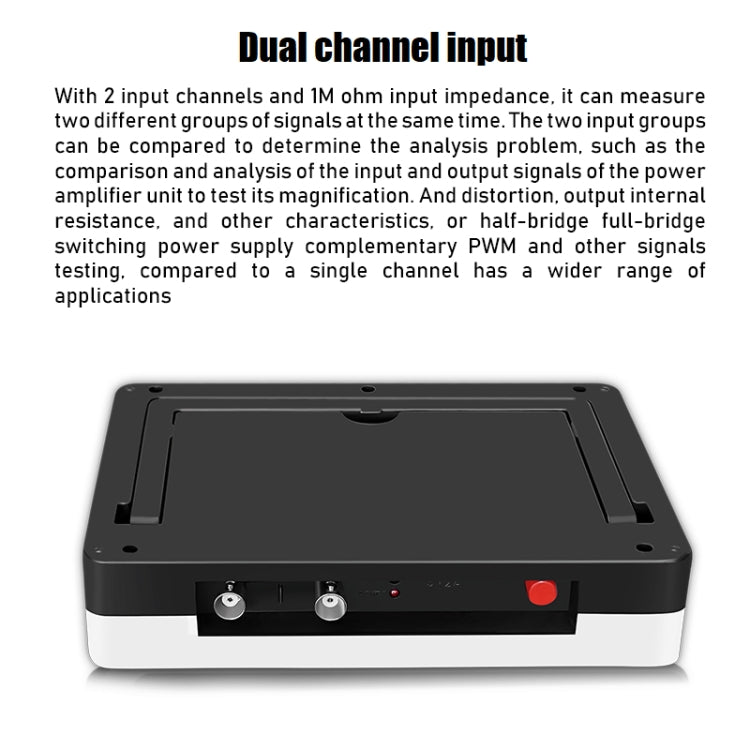

3. Number of channels: 2 channels
4. Real-time sampling rate: 1GSa/s
5. Vertical sensitivity: 50mV/div~500V/div
6. Horizontal time base range: 50S/div~10nS/div
7. Test voltage: 40V (1X probe), 400V (10X probe)
8. Storage depth: 240Kbit
9. Input resistance: 1M
10. ADC precision: 8bits
11. Coupling method: AC/DC

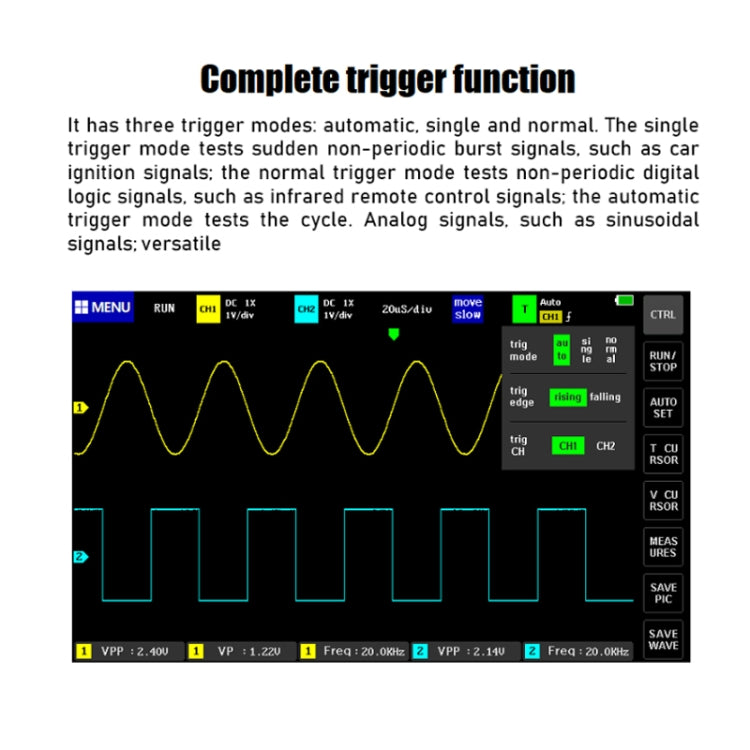

12. Trigger mode: single, normal, automatic
13. Trigger edge: rising edge/falling edge
14. External trigger voltage: 0~40V
15. Operation method: capacitive touch screen + gesture
16. Expansion port: USB image export

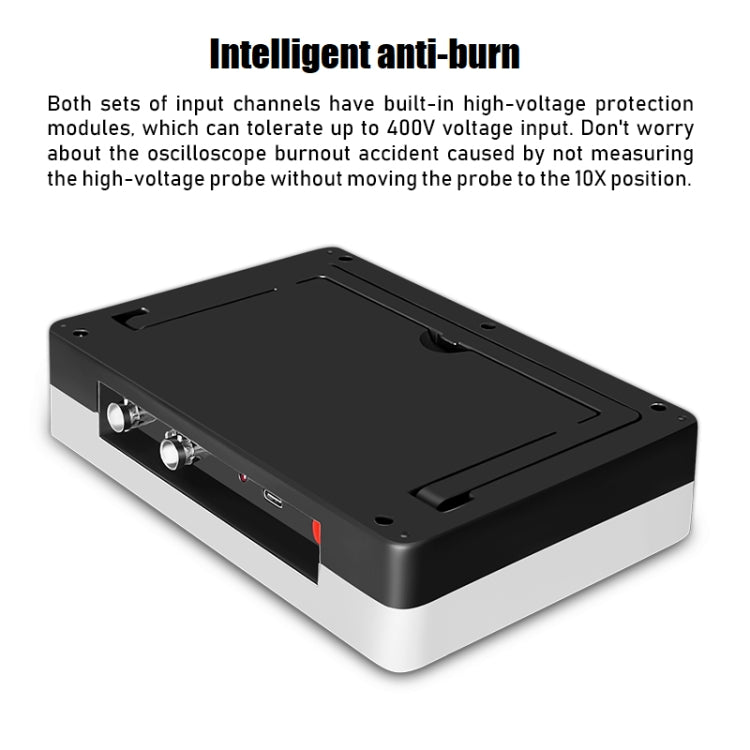

17. Intelligent anti-burnout, 1X can withstand up to 400V withstand voltage
18. 100MHz analog bandwidth @ 1GSa/s sampling rate (1X=5MHz, 10X=100MHz)

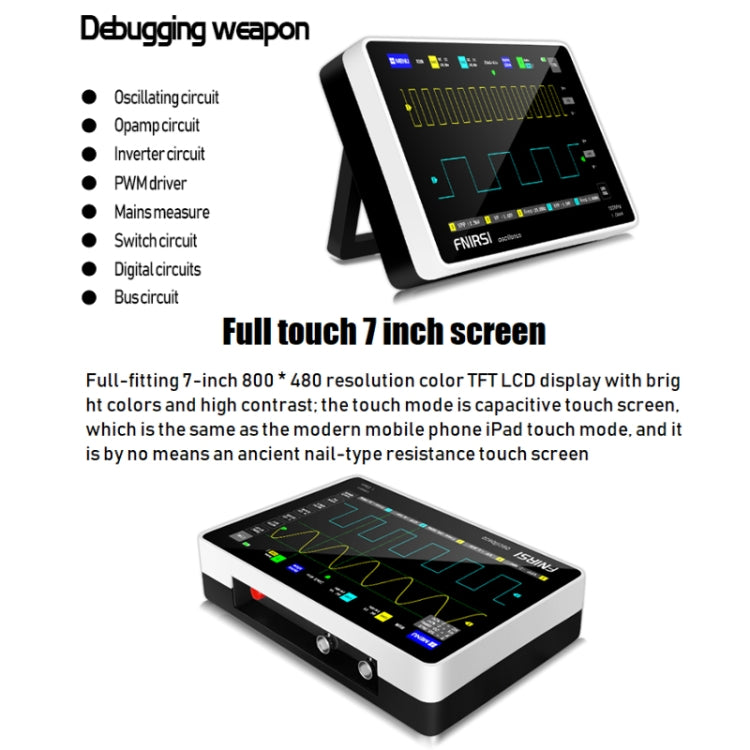

19. Fully fit the 7-inch 800x480 resolution color TFT LCD screen with bright colors and high contrast
20. Capacitive touch screen, the same way that modern mobile phones and tablets are touched, not the ancient fingernail operated resistive touch screen
21. High measuring voltage range, 1X can measure 0~40V, 10X can measure 0~400V, 100X can measure 0~4000V
22. Up to 12 parameters measurement: VPP, VP, Vmax, Vmin, Vavg, Vrms, Frequent, Duty+, Duty-, Time+, Time-, Period

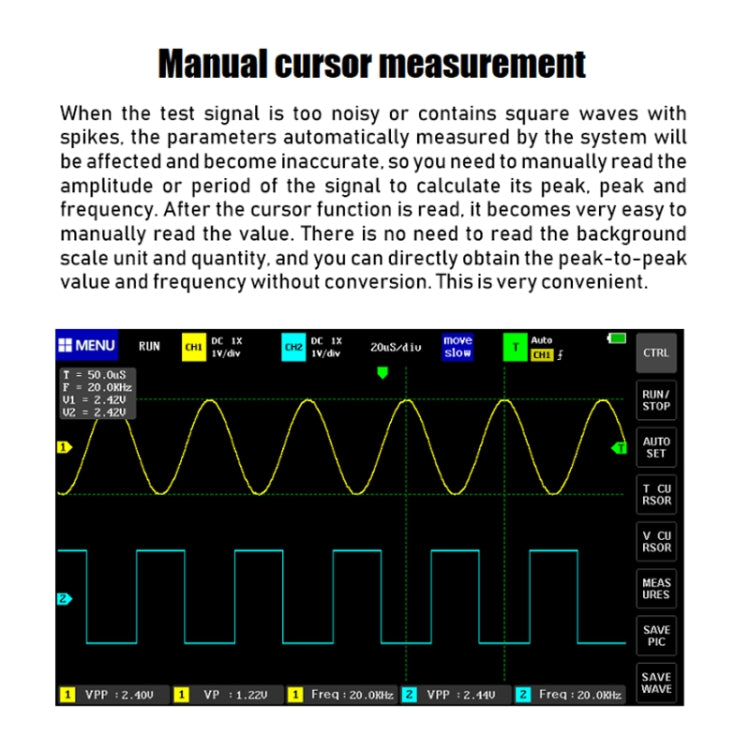

23. Cursor measurement function, convenient for manual measurement of period, frequency and voltage
24. Complete trigger function (single, normal, automatic)
25. At any time, the waveform display (pause function) will be frozen

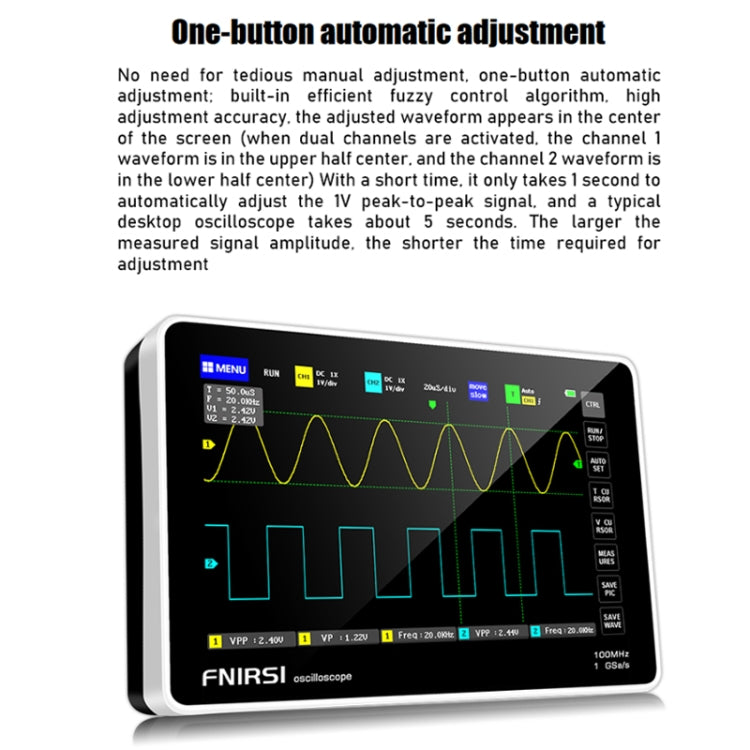

26. Equipped with efficient one-button AUTO

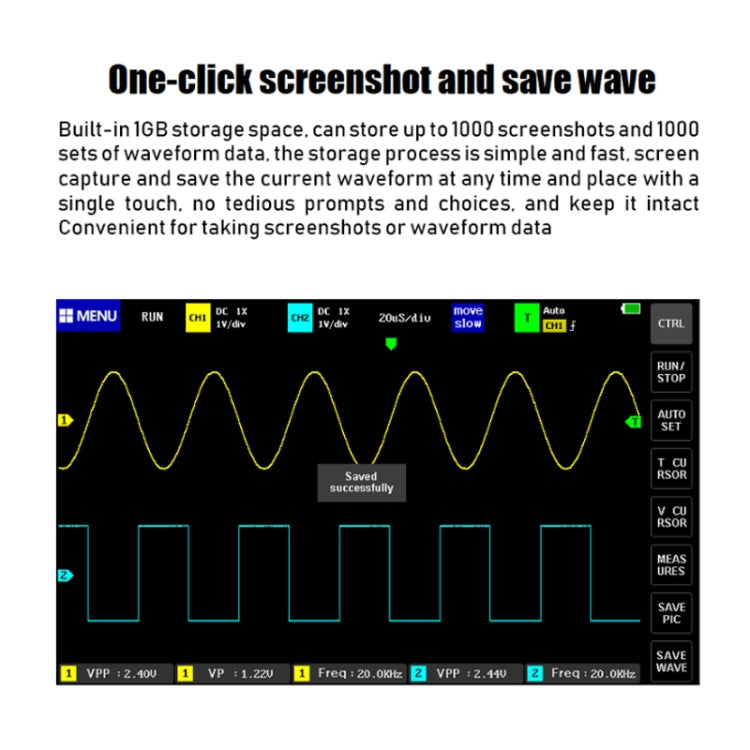

27. One-button waveform storage and screenshot
28. Built-in 1GB storage space, can store 1000 screenshots + 1000 sets of waveform data

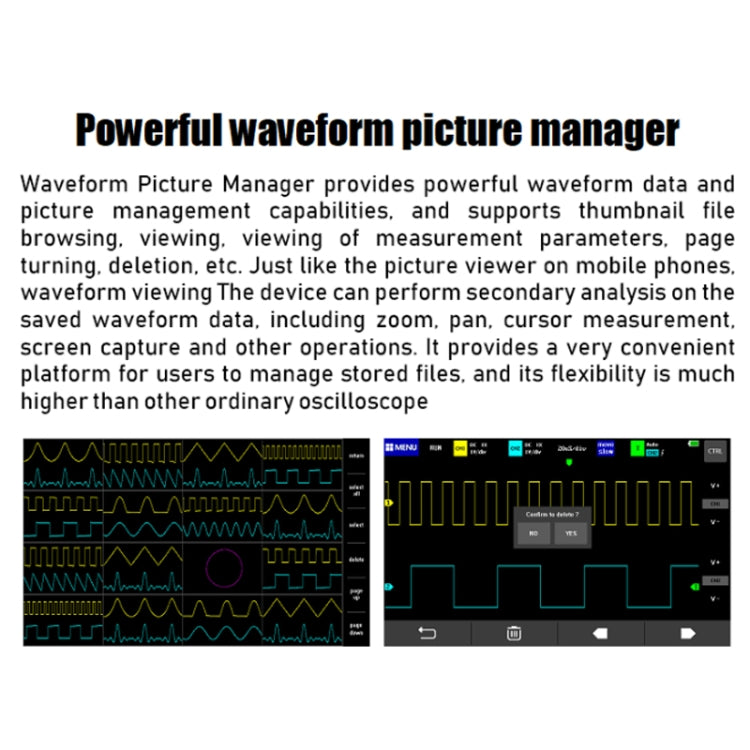

29. Powerful waveform image manager, supports thumbnail browsing, viewing, detailed viewing, page turning, deletion, and waveform zooming in, zooming out, moving, etc.

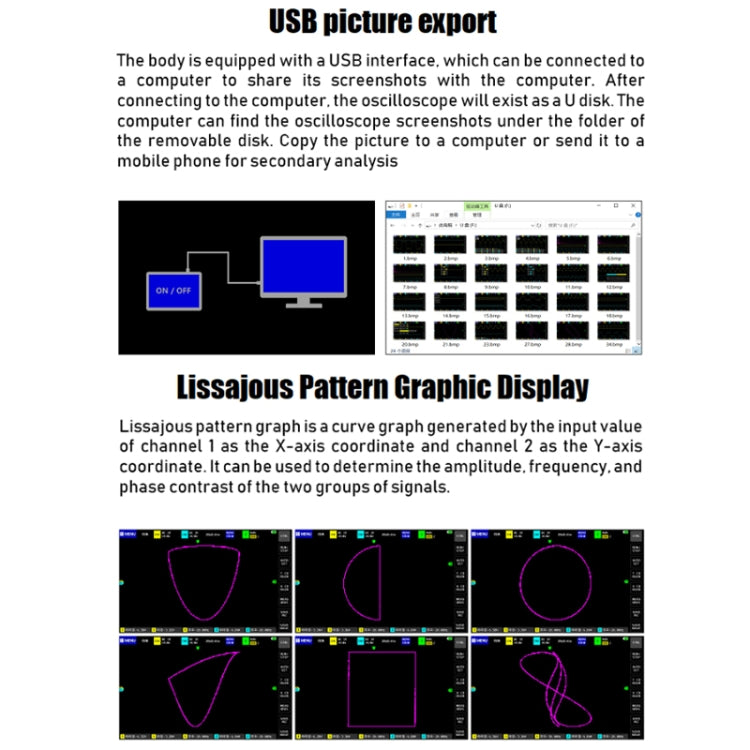

30. Equipped with a USB interface, it can be connected to a computer to share screenshots with the computer, which is convenient for secondary analysis
31. FFT display function, which can analyze the spectrum characteristics of the signal
32. Built-in 6000mAh rechargeable lithium battery, fully charged can be used continuously for 4 hours at the highest screen brightness
33. Memory compression technology, waveform refresh screen does not flicker
34. Screen brightness adjustment, background grid brightness adjustment

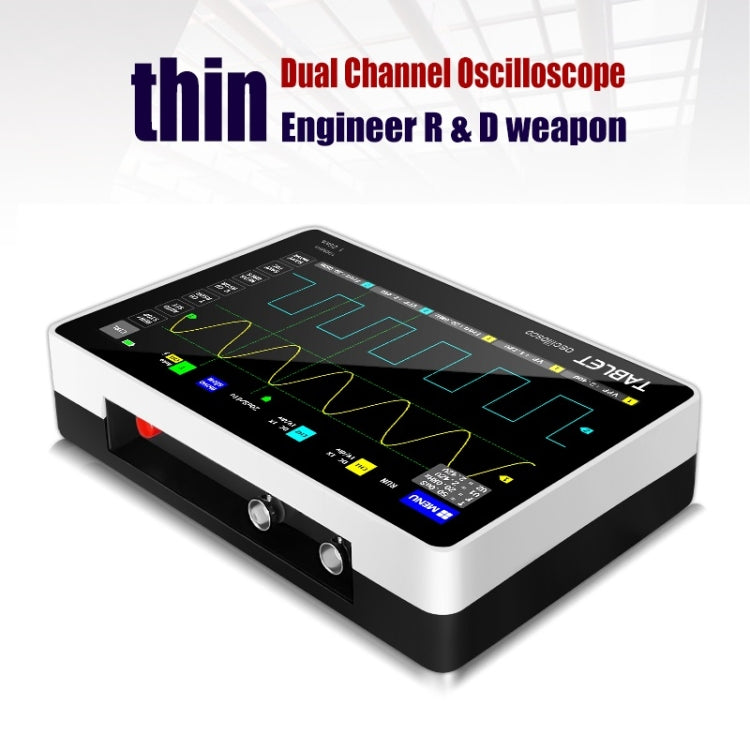

35. Ultra-thin, easy to carry
36. Power supply: lithium battery, 6000mAh (included)
37. Dimensions: 184x124x50mm

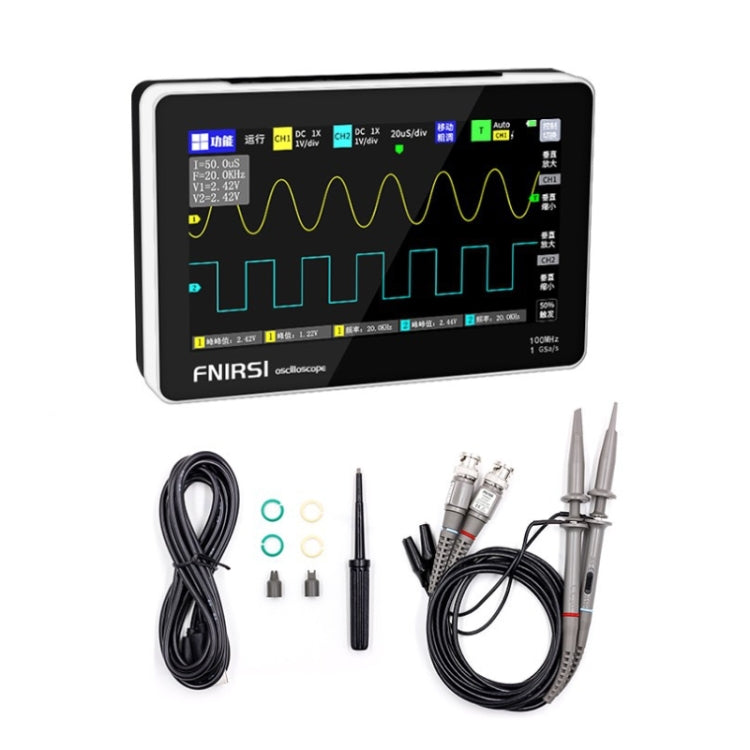

Packing list:
FNIRSI 1013D Oscilloscope Host x 1
Matched 100MHz probes (1X and 10X) x 2
USB cable x 1
US charging adapter x 1
