**Boot failures are frustrating.** You press the power button, the fans spin up, the RGB lights dance... but the screen stays black. Where do you even start?

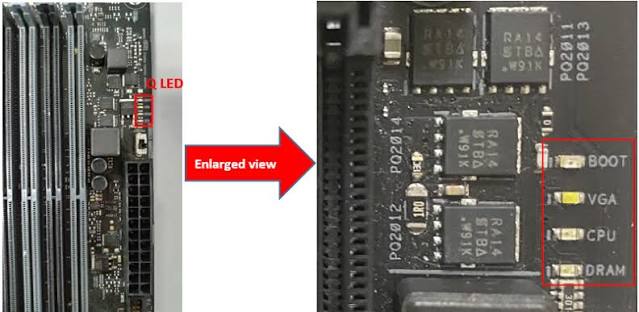

If you have an ASUS motherboard, the answer might be glowing right in front of you. Those tiny LEDs near the 24-pin power connector or memory slots aren't just for decoration—they are your system's **first line of defense** in diagnosing hardware issues.
This guide breaks down how to use the ASUS Q-LED system to pinpoint exactly which component is causing your boot failure, saving you hours of guesswork.
---
## What are Q-LEDs?
Q-LEDs are diagnostic lights built into ASUS motherboards. During the startup sequence (POST - Power-On Self-Test), the motherboard checks four critical components in order:
1. **CPU** (Red)
2. **DRAM** (Yellow/Orange)
3. **VGA** (White)
4. **Boot Device (HDD/SSD)** (Yellow/Green)
**The rule is simple:** If a Q-LED remains lit and doesn't turn off, that's the component the system is failing to initialize.
---
## The Official ASUS Troubleshooting Guide
For a complete, step-by-step visual walkthrough, **always refer to the official ASUS Support FAQ.** This page includes detailed images for cleaning pins and reseating components.
👉 **[Official Link: ASUS Motherboard Q-LED Troubleshooting](https://www.asus.com/support/faq/1042678/)** 👈
Below is a summary of the key steps from the official guide.
### 🟡 1. CPU LED is ON (Red)
*Indicates no CPU detected or CPU failure.*
**Troubleshooting Steps:**
1. **Re-install the CPU:** Carefully remove and reseat the processor in its socket.
2. **Check for Dirt/Damage:** Inspect the CPU socket pins on the motherboard and the gold pads on the CPU. If you see debris, *carefully* clean it. **Look for bent or broken pins**—this often requires replacing the CPU.
3. **Replace the CPU:** If steps 1-3 fail, the CPU may be faulty.
### 🟡 2. DRAM LED is ON (Yellow/Orange)
*Indicates no memory detected or memory failure.*
**Troubleshooting Steps:**
1. **Re-seat Memory:** Ensure the RAM is fully inserted. The retention clips should be completely closed. (See the official FAQ for "Correct/Incorrect" images).
2. **Check for Dirt:** Inspect the RAM module's gold pins and the motherboard slot for debris.
3. **Check QVL List:** Verify your RAM is on the motherboard's **QVL (Qualified Vendor List)**. Using incompatible RAM is a common cause of this error.
4. **Correct Slots:** Refer to your user manual for the recommended DIMM slot configuration (usually A2/B2 for two sticks).
5. **Test One Stick:** If using multiple modules, try booting with just *one* RAM stick installed. Test each stick individually in each slot to isolate the faulty module or slot.
6. **Replace RAM:** If the above fails, try known-working memory.
7. **Reinstall CPU:** Sometimes, improper CPU mounting can affect the memory controller, causing this LED to light up.
### 🟡 3. VGA LED is ON (White)
*Indicates no graphics card detected or display output failure.*
**Troubleshooting Steps:**
1. **Integrated Graphics:** If using the motherboard's onboard display output, try reinstalling the CPU (as this controls integrated graphics).
2. **Dedicated GPU:**
a. **Re-seat Graphics Card:** Remove and firmly reinstall the GPU in its PCIe slot.
b. **Check for Dirt:** Inspect the PCIe gold fingers on the GPU and the motherboard slot. Clean if necessary.
c. **Test Another GPU:** If possible, try a different graphics card to rule out a failure.
### 🟡 4. BOOT LED is ON (Yellow/Green)
*Indicates no bootable device detected (like an HDD/SSD) or device failure.*
**Troubleshooting Steps:**
1. **Reconnect Cables:** Firmly reconnect the SATA data cable to both the motherboard and the storage drive.
2. **M.2 SSD:** If using an M.2 drive, reinstall it securely and tighten the mounting screw.
3. **Check for Dirt:** Inspect the M.2 SSD's gold pins and the motherboard's M.2 slot for debris.
4. **Alternate Test:** Try a different SATA cable, a different SATA port on the motherboard, or swap the drive with a known working one.
---
## What if the Q-LED Steps Don't Work?
If you've followed all the steps for the specific glowing LED and the issue persists, the official FAQ recommends two final steps:
1. **Clear the CMOS:** This resets all BIOS settings to default, which can resolve configuration conflicts. [Learn how to clear CMOS here](https://www.asus.com/support/faq/1042678/).
2. **Update the BIOS:** Using the **USB BIOS FlashBack** feature (if your motherboard supports it) can add new hardware compatibility and fix boot issues. [Check the guide on using USB BIOS FlashBack](https://www.asus.com/support/faq/1042678/).
If you've exhausted all options, it's time to contact ASUS Product Support directly.
---
